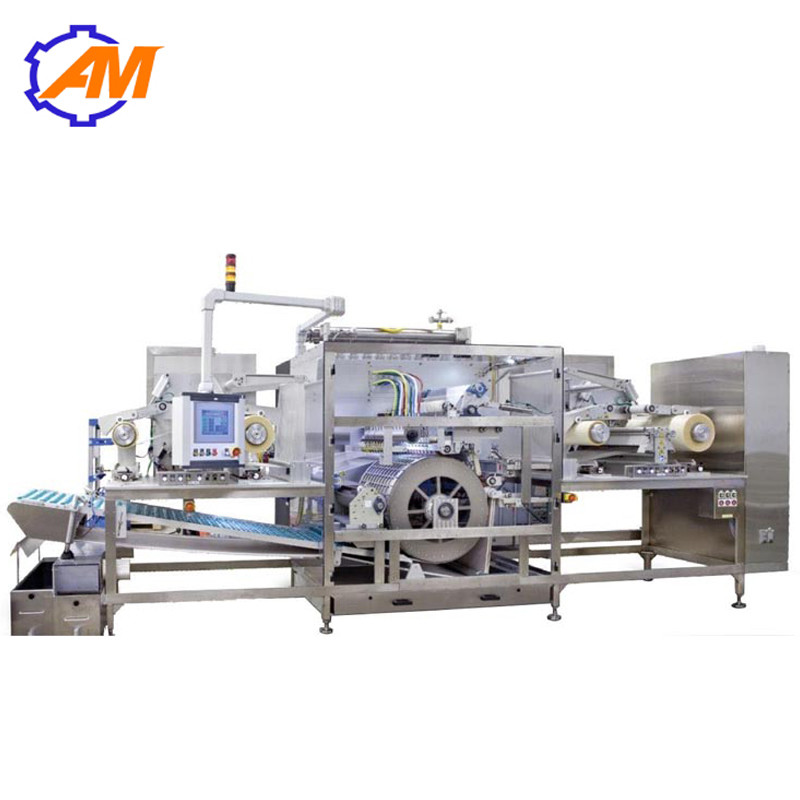

high capacity PVA/PVOH laundry detergent pods packing machine ecleaning laundry beads

Full automatic water-soluble PVA film packing machine can used to measure an pack pesticide, detergent, medical powder/granule/liquid etc. Water -soluble PVA film has good tensile strength. The product is elastic globular after the film stretching and packing.

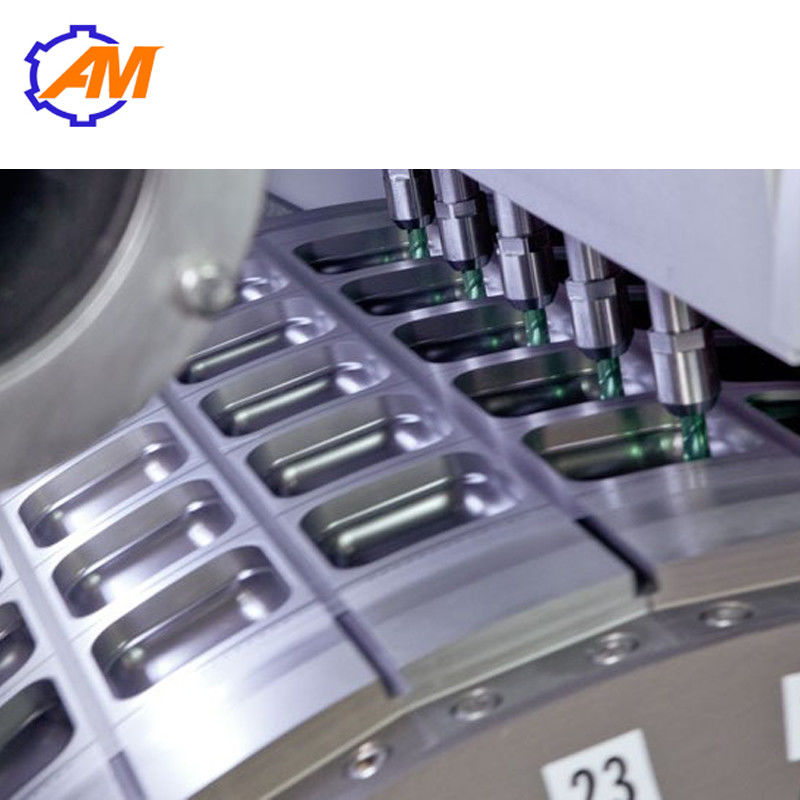

This machine adopts full automatic control packing way. It can automatically make pod, fill, seal, cut and discharge. It don’t need people to touch the materials, easy operation.

Technical Parameters
Model	AM-4-100
Machine type	Drum-type
Body shell	304 stainless steel
Component material	Hardened 520 aluminum oxidation treatment, 45# steel chrome plating
Electrical control	Mitsubishi Japan PLC, WEINVIEW Taiwan human-computer interface
Temperature control	PID intelligent control the temperature of heating part
Capacity	4 rows Approx 200 pcs/min
Packing volume range	15-35g
Packing size range	37*53*20mm(Not including sealing side), can be customized
Power voltage	380V, 50Hz
Pneumatic	0.6MPa, 150L/min
Dimension	3000*120*280mm
Weight	450KG
Warranty	1 year



Product

Why choose us?
1. We has been engaged in the purification technology and application. And we have the R&D team, performing continuous product research and improvement from time to time.
2. Our products are certificated by the most prestigious national and international institutes.
3. Each procedure of the production process is conducting under the strict quality control system. Our QC inspects each lot of the incoming material and the finished products carefully, so that we can supply the best products for customers.
4. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer products with the best quality and the most competitive price. Win-win is our ultimate purpose.
