China Roll On Perfume Bottles manufacturer

Hot sales Injection blow molding machine

Product Details:
Place of Origin: China (Mainland)
Brand Name: AMAN
Certification: CE
Model Number: AM45
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: US $30,000-50,000 / Sets
Packaging Details: export package
Supply Ability: 100 Set/Sets per Month

Detail Information

Condition: New Type: Injection Blow Molding
Style: Horizontal Plastic Type: Thermoplastic
Automatic: Yes Power(W): 34KW
Application: Pharmacy,food ,cosmetics,chemical Ect, Heating Power Of Cylinder: 11.85 Kw
Opening Force Of Blow Molding: 600 KN Range Of Formability Product: 15-800 Ml
Screw Stem Diameter: 50mm Heating Control Section: 3 Qty
Main Motor Power: 30kw High Of Formability Product: 165 Mm .
Pressure Of Hydraulic: 18Mpa Max. Theoretical Injection Capacity: 324 Cm3
Port: China Port
Highlight:

liquid filling machine

,

bottle filling machine

Product Description

Injection Blow Molding Machine



Product Description

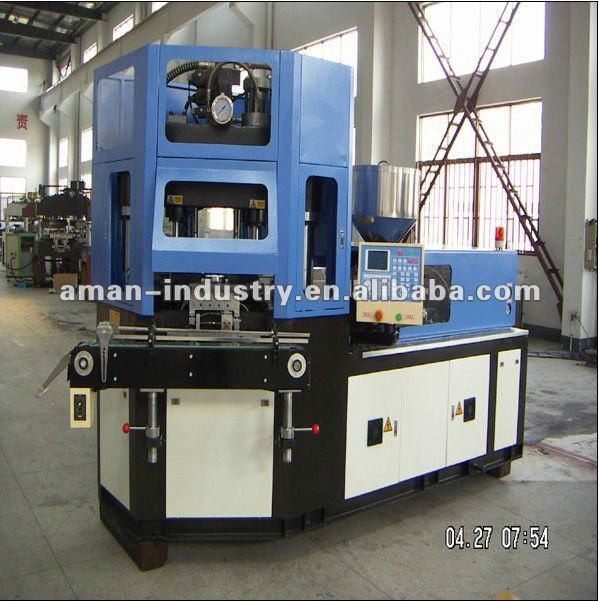

 Hot sales Injection blow molding machine 0

Injection blow molding machine Features

  1. Suitable bottle size: 3ml-1000ml
  2. Material: PP/PE/PS.
  3. High speed: cycle time control 9-15sec. on our injection blow molding machine.

Injection blow modling machine Advantage



1. The bottle blown by this machine has perfect neck formation. Dimension tolerance control is 0.2mm only. the neck is very smooth, no flash can be seen.

2. The bottle bottom is clean, only injection point can be seen, bottle weight tolerance is onl 0.1grm.

3. The bottle parting line is untouchable

4. Wall thickness is evenly distributed

5. No wastage at all

6. Production is high (the machine can control cycle time from 9-15sec.)

7. The bottle produced by this machine is suitable to pharmaceutical bottle, no human touch.



Injection blow molding machine Technical Parameters



NO.

ITEM

UNIT

DATE

1

Dia. of screw

MM

45

2

Max. retical capacity

Cm3

286

3

Total power for cylinder-heating

Kw

10

4

Clamping force of injection mold

Kn

450

5

Opening stroke

Mm

120

6

Clamping force of blow mold

Kn

52

7

Max. plate size of die (L*W)

Mm

480*390

8

Min. die thickness

Mm

240

9

Motor power

Kw

22



Injection blow molding machine Parts pictures



Hot sales Injection blow molding machine 2



Injection blow molding machine Main Parts



Parts Name

Brand Name

hydraulic vale, electromagnetism valve, proportional valve.

YUKEN

air valve and air pipe connector.

FESTO

hydraulic hose

ISR

sealing Parts

SEALTECH

hydrolic motor

INTERMOT

microcomoputer controller

TAIWAN

contactor and relay.

SCHNEIDER

short-circuit equipt

GMERLIN GERIN

air tube

CAMOZZI

conveyer motor

TAIWAN

main motor

BEIDE

proximity switch.

TAIWAN



Packaging & Shipping

 Hot sales Injection blow molding machine 4



Company Information

 Hot sales Injection blow molding machine 6



FAQ



Q1:What’s your guarantee or the warranty of the quality if we buy your machines?

A1:We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.



Q2:How can I install my machine when it arrives?

A2:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines. also we will send you a machine manual for your reference.



Q3:How about the spare parts?

A3: we will offer you a spare parts list for your reference
