wild-bottle PET blow molding machine

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: AMAN
Certification: CE
Model Number: AM880
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: US $40,000-70,000 / Sets
Packaging Details: exported packing
Supply Ability: 10 Set/Sets per Month

Detail Information

Condition: New Application: Bottle
Plastic Processed: PET Blow Moulding Type: Blow Moulding Machine
Automatic: No Voltage: 380V/50HZ 3phases
Power(W): 6KW Dimension(L*W*H): Bower: 1.70*0.75*2.0 Pre-Heater (L*W*H)1.80*0.75*1.55
Weight: 0.7T Product Material: PET/PE/PC
Container Volume: 0.05-2.5L(2 Cavity) 3-6(1 Cavity) Theoretical Output: 0.05-2.5L:700-850 5L:400
Max. Bottle Height: 360mm Max.mould Plate Dimension: 420*500 Mm
Clamping Force: 150 Kn After-sales Service Provided: Overseas Service Center Available
Warranty: One Year Port: Shanghai
Highlight:

bottle filling machine

,

water filling machine

Product Description

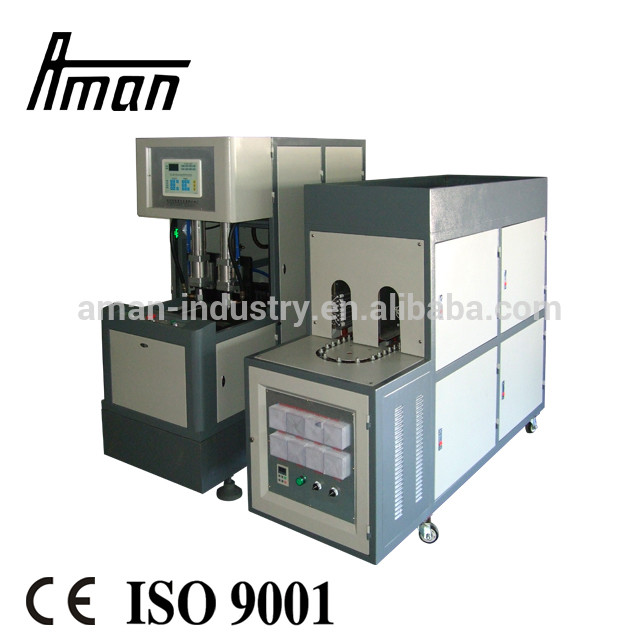

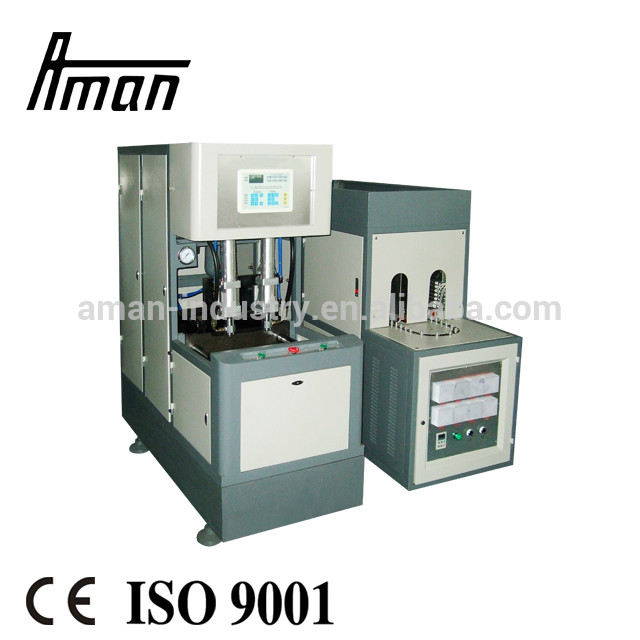

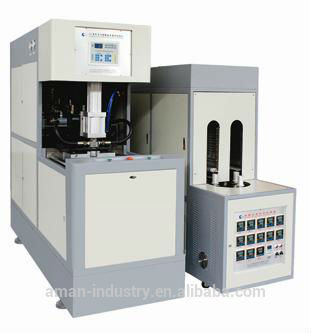

AM-880 Semi Automatic PET Blow Molding Machine

wild-bottle PET blow molding machine 0



Product Description

 Machine Introduce

1. This stretched blow molding machine is a semi-automatic machine,which is suitable to produce different shaped of PET/PC/PE bottle. It can blow 100ml to 6000ml bottle and is widely used to produce mineral water,carbonated drink,juice,medicine,cosmetic and oil bottles ect.

2. The machine adopts revolving infrared pre-heat systerm.it ensures PET preform be heated evenly.

3. The machine use mechanical-double-arm mould clamping which ensures the mould be closed tightly even under high pressure and high temperature.

4. PLC controlled systerm. Adopting "FERSTER"  brand from Germany for pneumatic components.

5. It has one safe door,more easy to operate and more safe.

6. The machine is also equipped with the silencer and oil systerm to lubricate the mechanical parts of the machine.





Machine Technical Parameters



TYPEITEMUNITTECHNICAL DATE
MOULDINGMax. mould plate dimension (L*W)MM420*500
Max mould thicknessMM250
Clamping forceKN150
Mould opening strokeMM240
AIR COMPRESSORHigh pressure Air CompressorM3/Mpa KW1.0/3.0     11KW
Air pressure for blowingKW30
AIR DRYERAir Freezing DryerM3/Mpa KW1.0/3.0 0.375KW
 High pressure air Compressor(L*W*H)M1.85*0.75*1.50
High Air compressorT0.65
Air Freezing DryerM1.05*0.60*1.10
Air filtersKG10*2PCS





  Machine Parts pictures



wild-bottle PET blow molding machine 2



Auxiliaries



wild-bottle PET blow molding machine 4

Packaging & Shipping



wild-bottle PET blow molding machine 6



Company Information

  wild-bottle PET blow molding machine 8



AMAN MACHINERY CO.LTD

Address : 363/404,xihu east rd., wuxi city, china

Website: www.amanmachinery.com

Worktime : 09:00-18:00 (Beijing time)

Business Phone : 86-510-81802050( Working time) 86--13358108880 (Nonworking time)

Fax : 86-510-82443566



FAQ



Q1:What’s your guarantee or the warranty of the quality if we buy your machines?

A1:We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.



Q2:How can I install my machine when it arrives?

A2:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines. also we will send you a machine manual for your reference.



Q3:How about the spare parts?

A3: we will offer you a spare parts list for your reference
