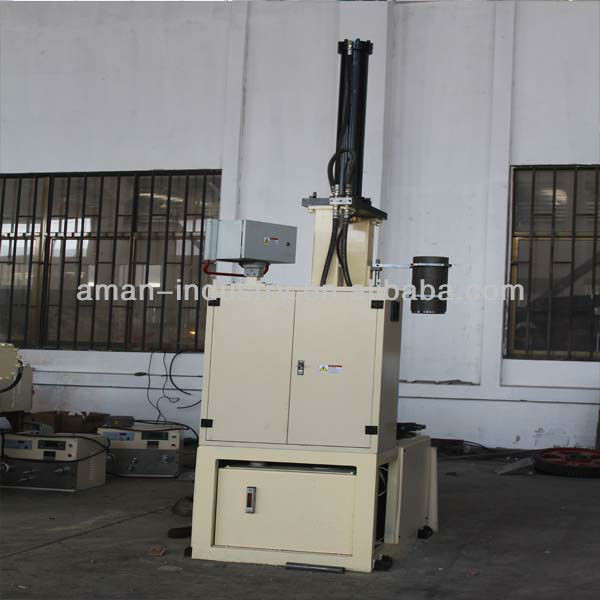

hot sell ptfe tape machine

No.

Name

Specification and parameter

Qua.

Total power

1

Mixer

Mixing bottle:φ185×260mm;

Bottle Volume:1.5Kg;

Quantity:4pcs;

Mixing time:15~20min;

Motor power: 0.75KW;

Total Ratio Reducer I:17.655;

Heater Power: 600W×4;

Weight:About 400Kg.

1set

3.0kw

2

Prepressing

machine

Cylinder diameter: φ80 mm;

Valid stroke: 790mm;

Mold diameter:φ99 mm;

Length: 1200mm;

Max speed:80cm/min;

Oil motor: 1.5kw;

Weight:about 1000 Kg.

1set

1.5kw

3

Push and extrusion machine

Oil motor power:5.5kw;

Oil motor pressure:64Kgf/cm²;

Die mouth diameter: 30°φ16mm 1pc;

Diameter of LoadingMaterial cylinder: φ100 mm;

Loading Material cylinder length: 700mm;

Max. stroke of Rod: 700mm;

Max.Loading materail stroke: 700mm;

Cylinder heater power:4.5kw*3 zones;

Heaterpower of Keeping temperature : 3kw* 1 zone;

Weight:1500kg.

1set

13kw

4

Double-

roller

Calender

Roller diameter: φ400mm;

Roller length:400 mm;

Line speed: 5~25m/min;

Driver power: 7.5kw(converting motor);

Speed Reducer model:cycloidal planetary gear speed reducer;

Mold teperature controller:1set(water supply);

Mold temperature controller heater power: 9kw;

Electric and hand Turn-screw for rollers distance adjust;

Direction-adjusting copper board: Inside hole φ20.5mm 1pc;

Weight :3200 Kg.

1set

16.5kw

5

Winder

Roller diameter: φ120 mm;

Max.rolling width: 500 mm;

Weight:300 Kg.

1set

6

Unreeling machine

Pulling power:0.75kw;

Pulling roller diameter:φ150mm;

Max.pulling speed:21.7m/min;

Feed width:500 mm;

Weight: 500 Kg.

1set

0.75kw

7

Heater

Box

(Oven)

Total Heater power:28kw;

Max. temperature :250~300°C;

Pulling motor power:0.75kw(converting motor)×2;

Directional roller diameter:φ80mm;

Max.speed of Direction roller :45 m/min;

Directional roller model :unfolding;

Heater model:Air;

Ratio of stretch: 2-15, adjustable;

Diameter of Stretch roller:φ80mm.

Weight : 2000 Kg.

1set

30kw

8

Correcting

deviation

and winder

Pulling motor power:0.75kw(converting motor);

Pulling roller diameter:φ150mm;

Pulling speed:10~48m/min;

Max.rolling diameter:φ200mm;

Max.rolling width:400 mm;

Correcting diviation power:0.75kw;

Weight :600 Kg.

1set

2.0kw

9

Slitter

Motor power:0.75KW(converting motor);

Max.cutting width :400mm;

Slitting speed:3~12m/min;

Max.diameter of release roller:φ250 mm;

Diameter of pulling roller: φ100mm;

Note:Dividual small eletric box,operating expediently;

Weight :800 Kg.

1set

2.0KW

10

Rewinder

Rolling Length:10m;

Motor power:60W 670rpm;

Pullingelectromagnet: 0.7kg,voltage:220V;

Inside dia.of Release roller:

φ37~φ40mm;

Inside Dia. Of re-rolling:

φ30mm;special framework;

Weight :60 Kg*4.

2sets

0.5KW

11

Electric

Controlling Box

No.1 for item 2,3,4;

No2 for item6,7,8.

Weight :150 Kg*2.

2pcs
